제품 상세 정보:
|
| 처리 서비스: | 성형, 절단, 트리밍 | 원래 장소: | 광동, 중국 |
|---|---|---|---|
| 플라스틱 모딩 유형: | 주입 성형 | 색상: | 사용자 정의 색상 |
| 특징: | 친환경 | 표면 마감 :: | 광택 있고 매끄럽고 페인팅, 질감 등 |
| 강조하다: | multi-cavity mineral water cap mould,short cycle time injection mould,precision water cap injection mould |
||

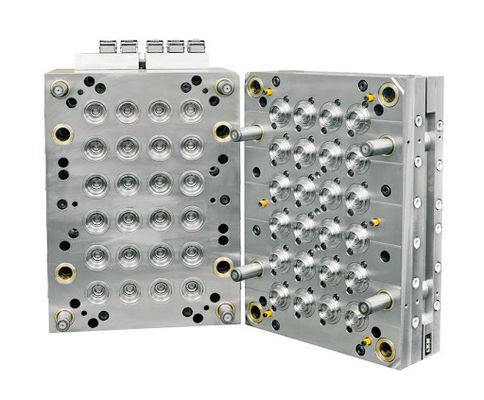

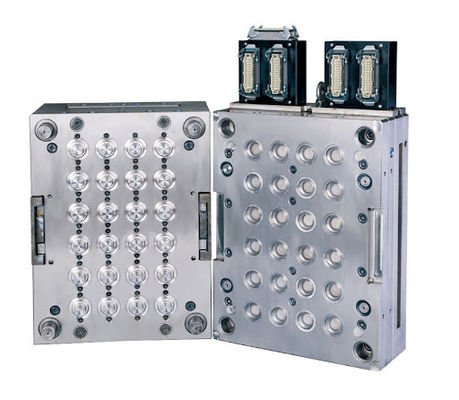

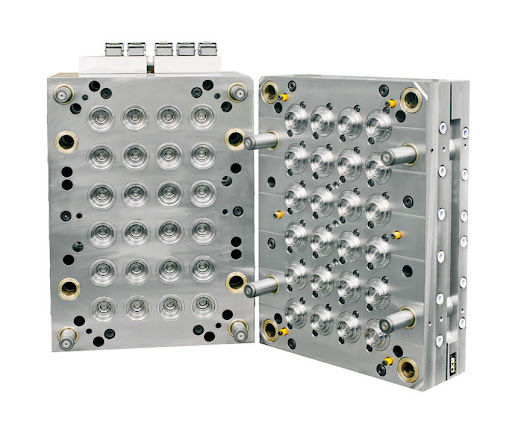

Every PET bottle deserves a matching plastic cap, and the right cap can enhance the bottle's overall appearance. SENLAN provides customers with high-quality hot runner and cold runner cap injection molds, as well as flip-top molds, to produce the perfect plastic caps. Our product range includes molds for various types of caps, such as standard screw caps, tamper-evident caps, and push-pull caps. These caps are suitable for mineral water bottles, soft drink bottles, juice bottles, as well as certain food and non-food packaging containers.
| Plastic material | ABS/PP/PC/PE/PVC/TPE/TPU... |
| Material of mould | 45#/50#/P20/718/2738/NAK80/S136 |
| Mould Standard | LKM; HASCO; DME |
| Runner System | hot/cold runner |
| Cavity | Single or Multi Cavities |
| Mould life | 300,000-500,000shots |
| Surface treatment | Polishing/smooth,texture/frosted, painting, plating, printing |
| Experience | 10 years experience in plastic injection mold making and plastic products |
| Certification | ISO9001:2015 |
| Product name | Multi Cavity Injection Mould/plastic Injection Mold For plastic Cap |
| Tolerance | 0.02mm -0.05mm |
| Mould Base | LKM.HASCO |
Our tooling work is able to make different size of molds with single cavity or multi cavities. With your product data, our engineer can provide you the feasible project with low price and high quality. Below shows our manufacturing ability:
1. Maximum mold size 2500mm*2000mm*1500mm
2. The highest machining precision: ± 0.005mm
3. The highest injection precision: ± 0.03mm
4. Experience of high precision molds and custom injection molding for healthcare and high-grade appearance parts
5. Delivery time for each mold is 25-45 days, depending its complexity.
6. We equip our own high precision CNC machines, EDMs, Wire cut machines, mirror EDM, three-coordinates measuring machine to ensure the quality of both mold and injection parts.
The application of pet preform molds
The most important application scenario of plastic injection mold is the plastic product processing plant. In this scenario, plastic injection molds are usually mass-produced for the production of various plastic products. For example, beverage, cosmetics, food and other industries will use plastic bottle cap preform molds to produce plastic caps. The application of plastic cap injection molds in these industries greatly improves production efficiency, reduces production costs, and also ensures the quality of products.
Why choose us?
1. We are specialized in mold manufacturing and production, with perfect mold production and transportation supply chain;
2. We can customize the production mold according to your needs. We are an efficient factory with a strict quality control department, so there is no need to worry about speed and quality.
3. One year after-sales warranty, no worries about buying!
